LESAN Lighting logo
Underwater Light· LX-SC009C Series

LX-SC009C

Professional lighting fixtures for water features, gardens, architecture, and bridges.

IPIP68
Datasheet
IP Rating: IP68
IK Rating: IK10
Water Depth: max 5m
Mounting Method: Recessed Mounted
Safety Class: Class III
Certification Mark: CE
Environmental Mark: RoHS
Recyclable Mark: RECYCLABLE

Options

SELECT

Typical Power

12W18 W24 W

Input

24V350mA500mA700mA

Control Method

ON OFFDMX512DALI0-10V

LED Quantity

12 PCS

Colour (CCT)

2200K2700K3000K4000K6500KRGBW

CRI

Ra ≥ 70Ra ≥ 80Ra ≥ 90

Beam Angle

15°25°30°45°

Material

SUS#316
ELECTRICALELECTRICAL PARAMETERS
Typical Power| Power Consumption12W/18 W / 24 W
ELECTRICALELECTRICAL PARAMETERS
Input| Current24V/350mA/500mA/700mA
ELECTRICALELECTRICAL PARAMETERS
Control Method| ControlON OFF/DMX512 / DALI / 0-10V
ELECTRICALELECTRICAL PARAMETERS
Cable Order| Wiring1 in (one in)
ELECTRICALELECTRICAL PARAMETERS
Security Level| ClassClass III
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
LED Chip Brand| BrandCREE
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
LED Chip Type| TypeRJ5050 / XML-C/XPG
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
LED Quantity| Qty12 PCS
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
Colour (CCT)| Colour2200K/2700K/3000K/4000K/6500K/RGBW
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
CRI| RenderingRa ≥ 70/Ra ≥ 80/Ra ≥ 90
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
Typical Light Efficiency| Efficacy>55 lm/W (3000K) · >65 lm/W (4000K) · >90 lm/W (6500K) · >45 lm/W (RGBW)
LIGHT SOURCELED LIGHT SOURCE PARAMETERS
Lifetime| Life50,000 H
STRUCTURESTRUCTURAL PARAMETERS
Material| HousingSUS#316
STRUCTURESTRUCTURAL PARAMETERS
Cover| GlassSuper-transparency tempered glass, T = 10 mm
STRUCTURESTRUCTURAL PARAMETERS
Beam Angle| Angle15° / 25° / 30°/ 45°
STRUCTURESTRUCTURAL PARAMETERS
Product Dimensions| SizeSee DIMENSIONS drawing
STRUCTURESTRUCTURAL PARAMETERS
Weight| Mass1.13 kg
ENVIRONMENTENVIRONMENTAL PARAMETERS
Working Temperature| Temp-25°C ~ +45°C
ENVIRONMENTENVIRONMENTAL PARAMETERS
Storage Humidity| Humidity0 ~ 90%
ENVIRONMENTENVIRONMENTAL PARAMETERS
IP Code| IPIP68
ENVIRONMENTENVIRONMENTAL PARAMETERS
IK Code| IKIK10

More underwater light

Companion luminaires within the same product family.

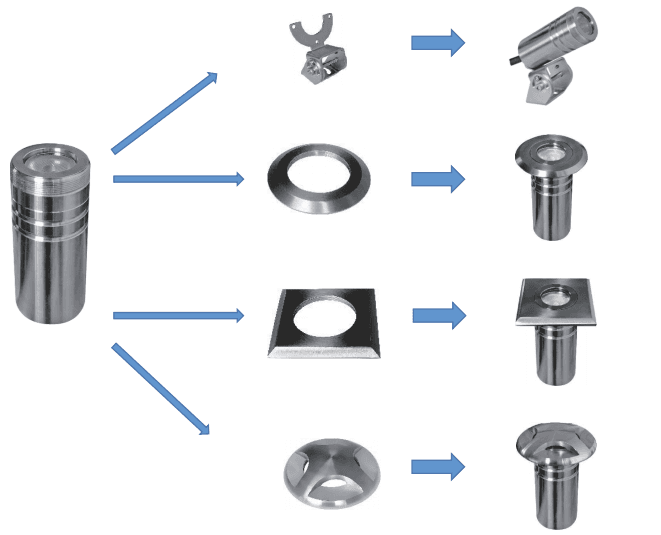

LX-UD-001A

LX-UD-001A

Power: Max. 3 WIP: IP68

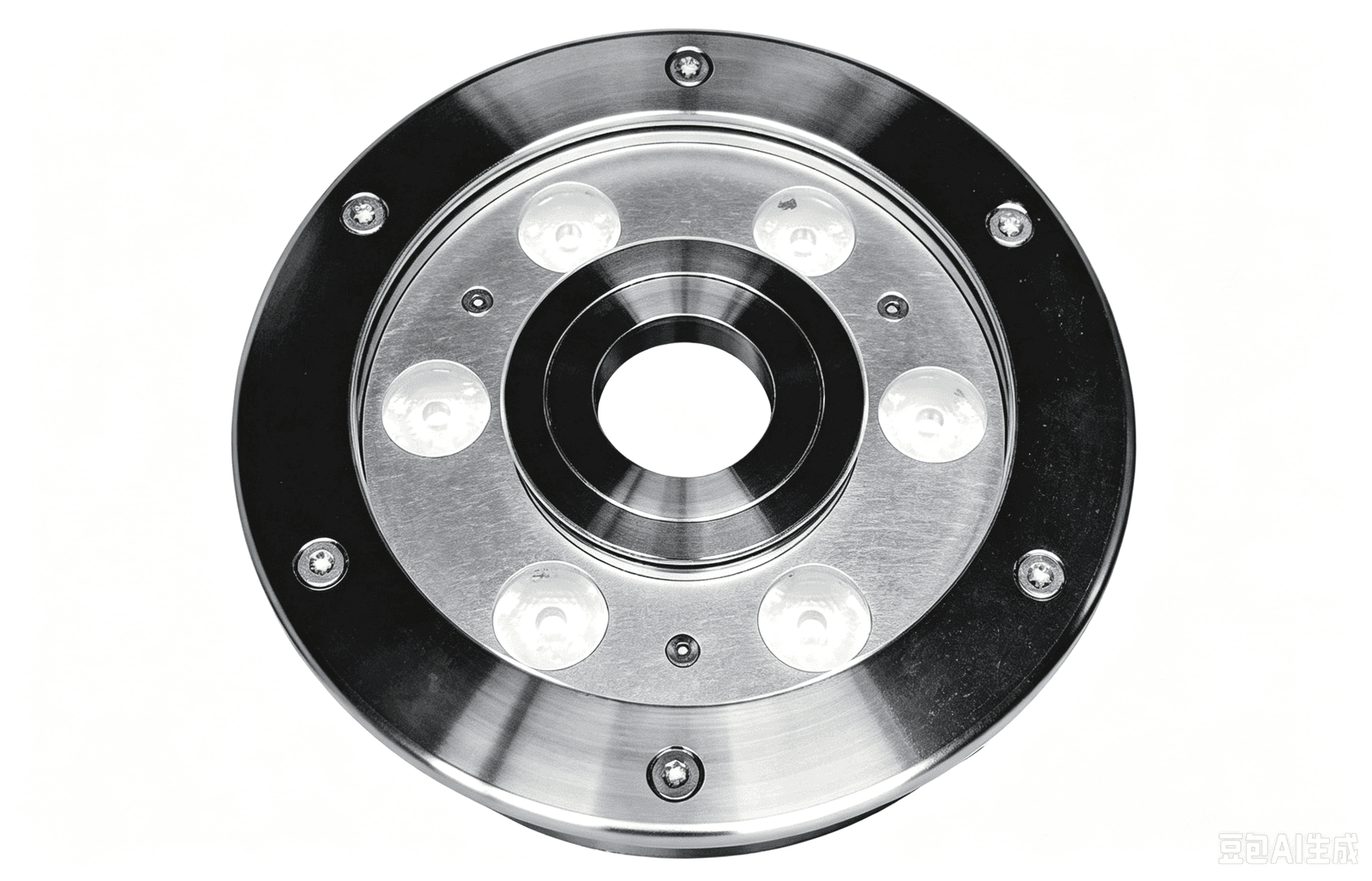

LX-UD005

LX-UD005

Power: 24WIP: IP68

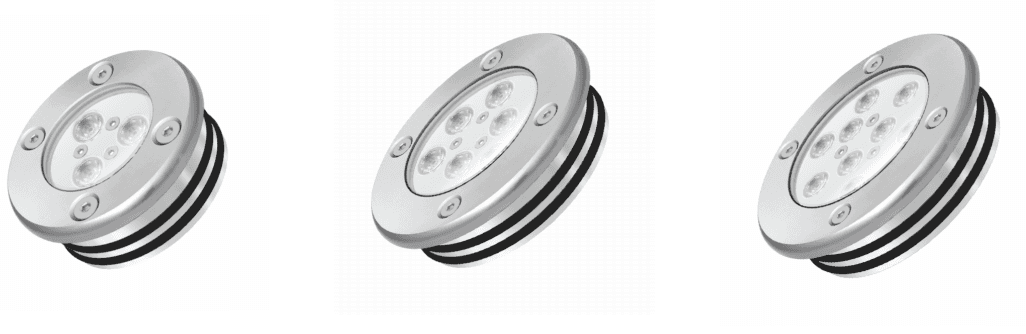

LX-SC009

LX-SC009

Power: Max. 24 WIP: IP68

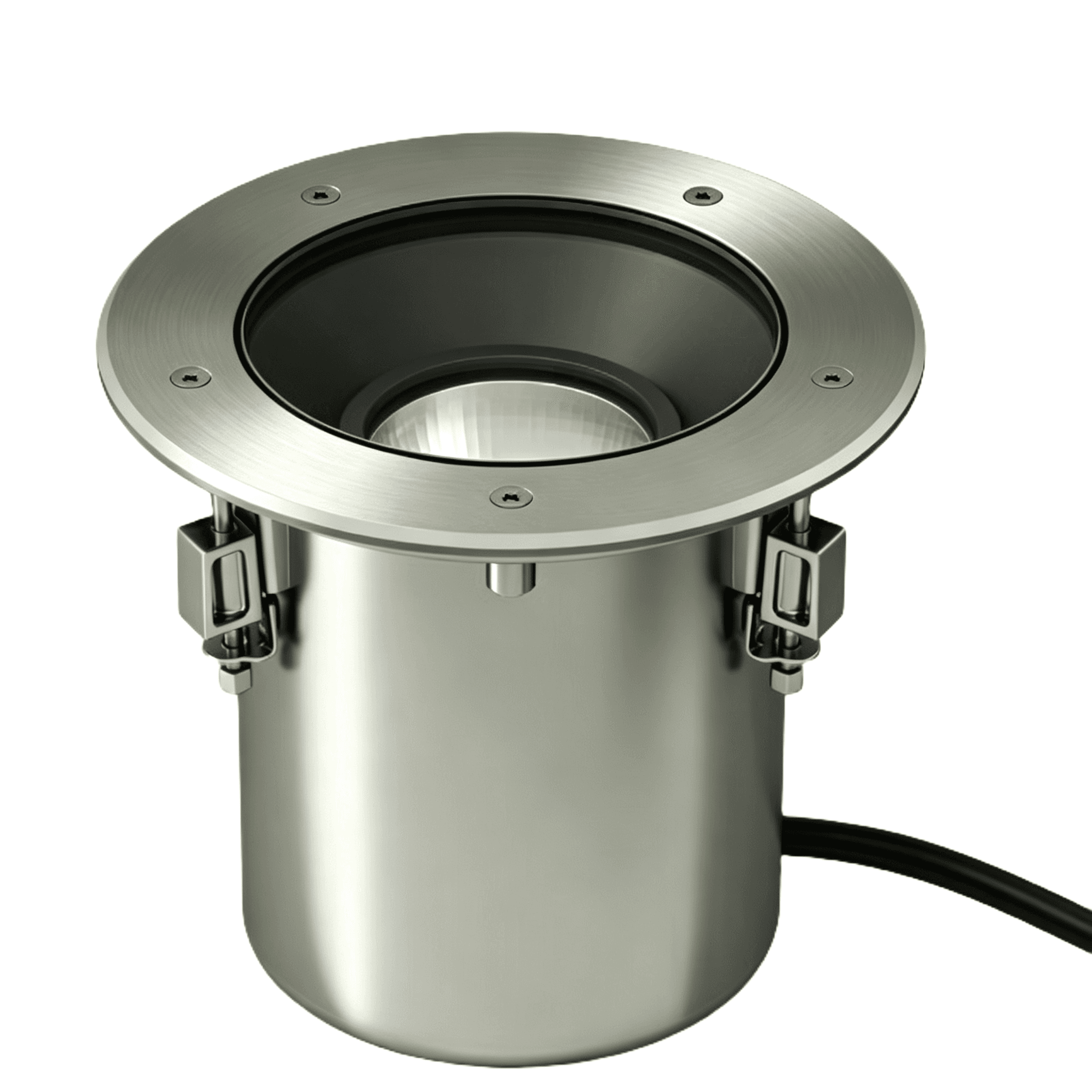

LX-BG84786
