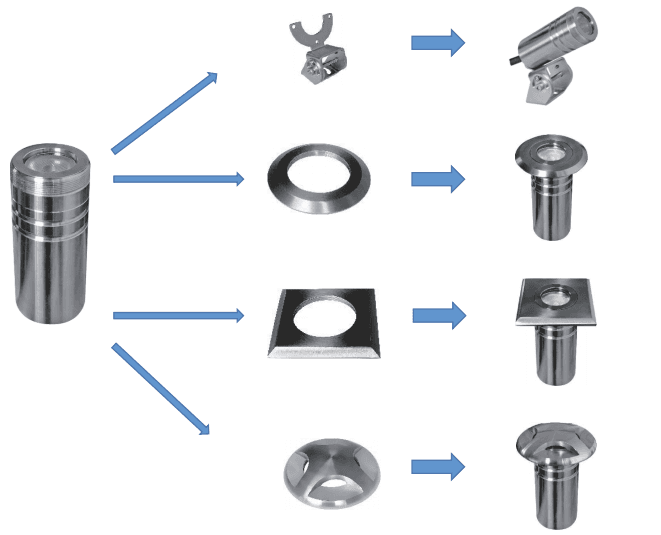

LX-UD001AP· LX-UD001AP Series
LX-UD001AP
Professional lighting fixtures for water features, gardens, architecture, and bridges.
IPIP68
Datasheet
Options
Typical Power
1 W2 W3 W
Input
24V350mA500mA700mA
Control Method
ON OFFDMX512DALI0-10V
LED Quantity
1 PCS
Colour (CCT)
2200K2700K3000K4000K6500KRGBW
CRI
Ra ≥ 70Ra ≥ 80Ra ≥ 90
Beam Angle
10°20°30°
Material
SUS#316AluminumBrass
| ELECTRICAL | ELECTRICAL PARAMETERS |
|---|---|
| Typical Power| Power Consumption | 1 W / 2 W / 3 W |
| Input| Current | 24 V / 350 mA / 500 mA / 700 mA |
| Control Method| Control | ON OFF / DMX512 / DALI / 0-10V |
| Cable Order| Wiring | 1 IN (one in) |
| Security Level| Class | Class III |
| LIGHT SOURCE | LED LIGHT SOURCE PARAMETERS |
| LED Chip Brand| Brand | CREE |
| LED Chip Type| Type | RJ5050 / XML-C / XPG |
| LED Quantity| Qty | 1 PCS |
| Colour (CCT)| Colour | 2200K / 2700K / 3000K / 4000K / 6500K / RGBW |
| CRI| Rendering | Ra ≥ 70 / Ra ≥ 80 / Ra ≥ 90 |
| Typical Light Efficiency| Efficacy | >55 lm/W (3000K) · >65 lm/W (4000K) · >90 lm/W (6500K) · >45 lm/W (RGBW) |
| Lifetime| Life | 50,000 H |
| STRUCTURE | STRUCTURAL PARAMETERS |
| Material| Housing | SUS#316 / Aluminum / Brass |
| Cover| Glass | Super-transparency tempered glass, T = 10 mm |
| Beam Angle| Angle | 10° / 20° / 30° |
| Product Dimensions| Size | See DIMENSIONS drawing |
| Weight| Mass | 0.38 kg |
| ENVIRONMENT | ENVIRONMENTAL PARAMETERS |
| Working Temperature| Temp | -25°C ~ +45°C |
| Storage Humidity| Humidity | 0 ~ 90% |
| IP Code| IP | IP68 |
| IK Code| IK | IK08 |

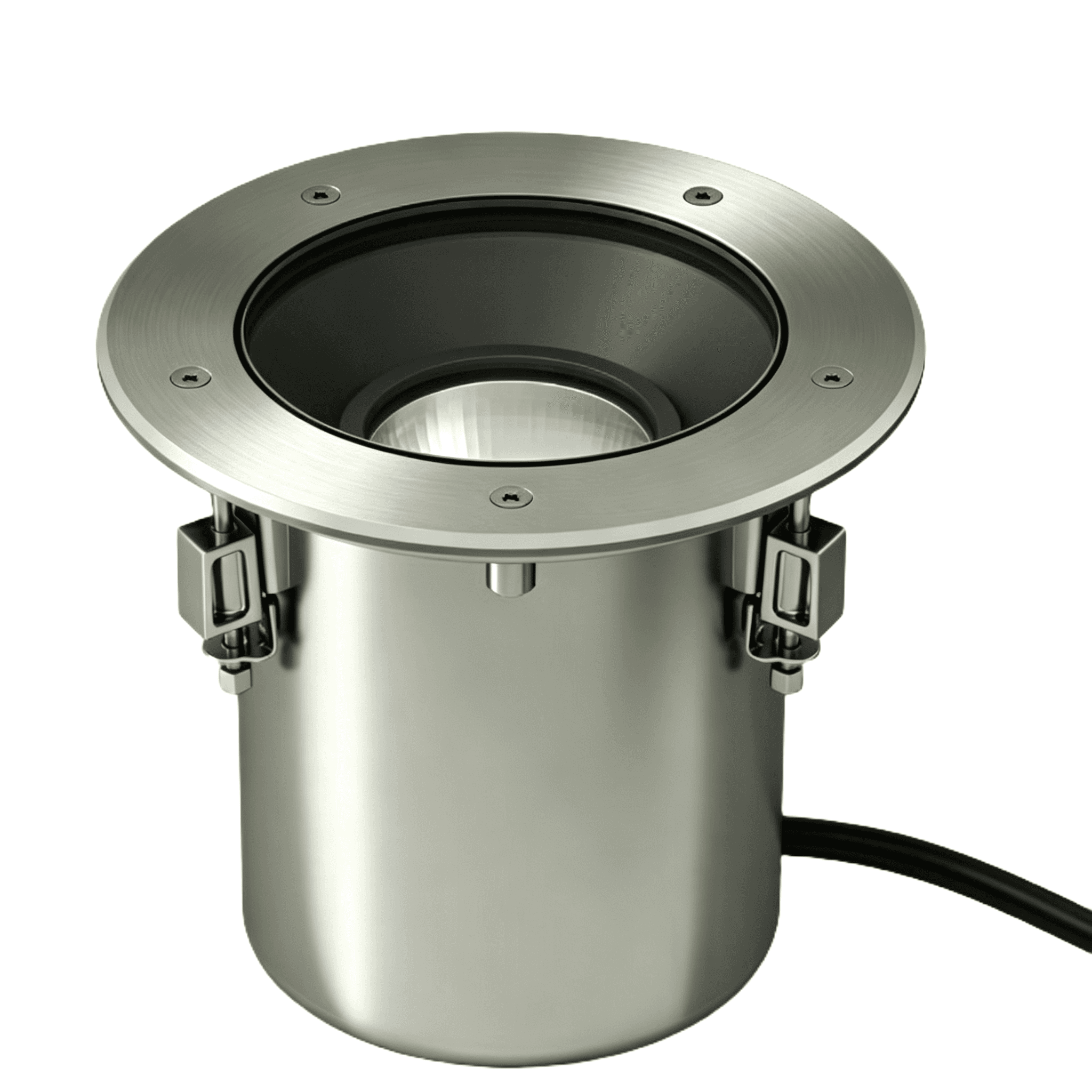

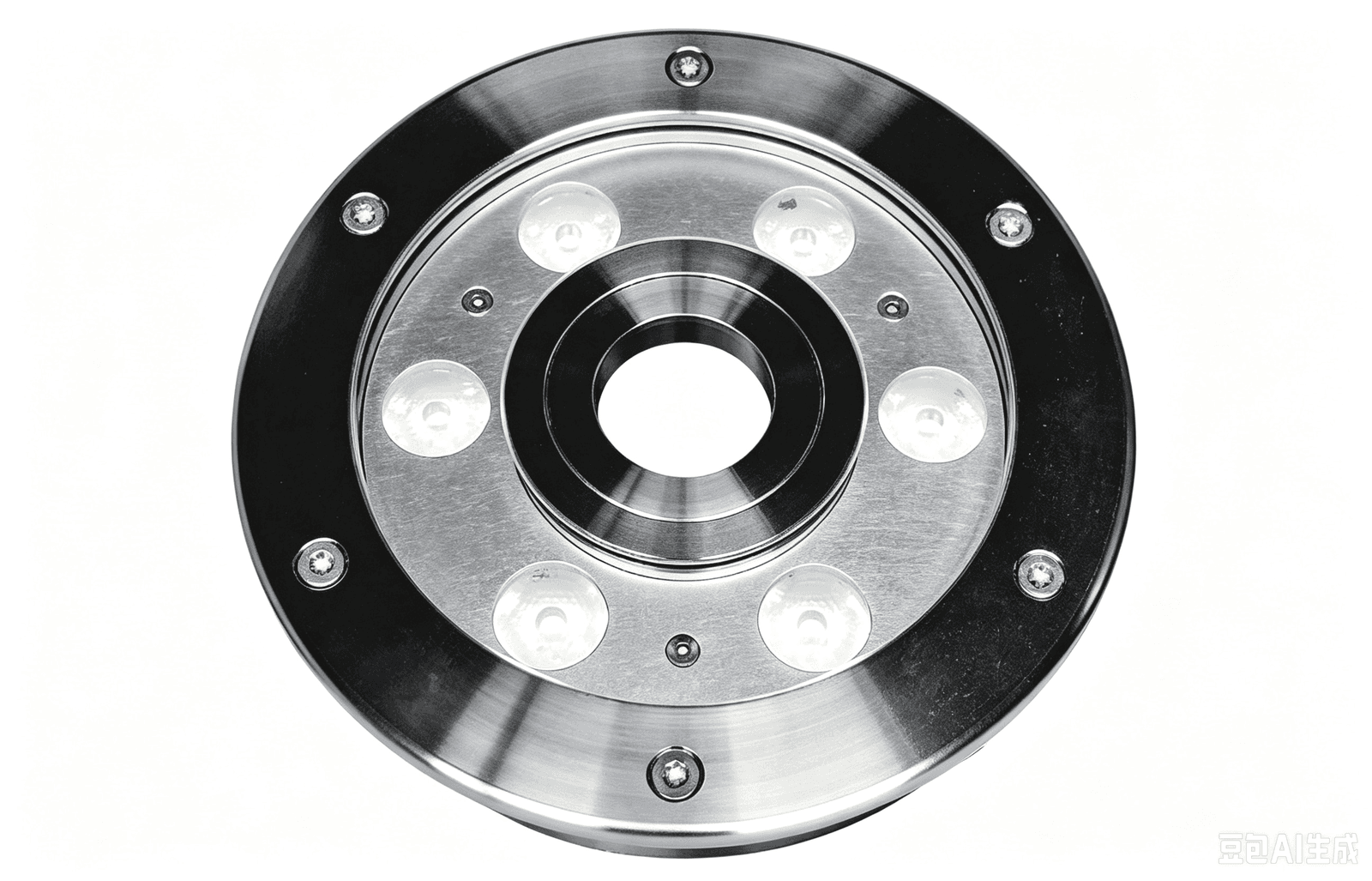

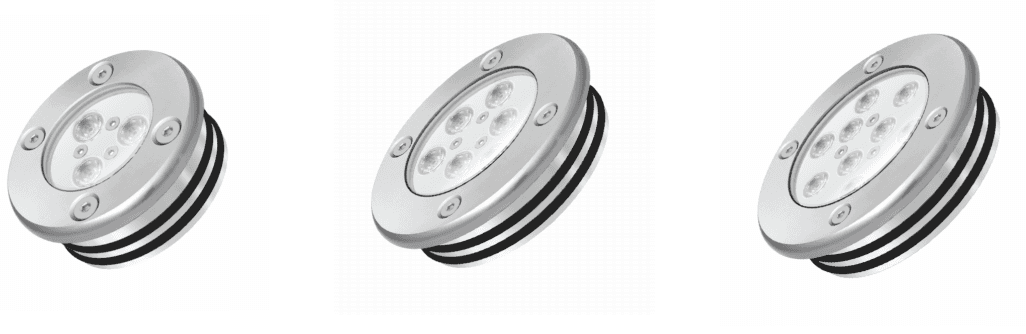

More lx-ud001ap
